We at "Sri Padmavathi Cables" ensure that each wire from a bunch of wires in Optical Fibre Cable is robust and flexible at same time.
Optic Fibre cables are cheaper than copper wires but the strength is not compromised as the steel used with high manufacturing efficiency at “Sri Padmavathi Cables” makes them stand apart.
What are the features of Optic Fibre Cables by Sri Padmavathi Cables?

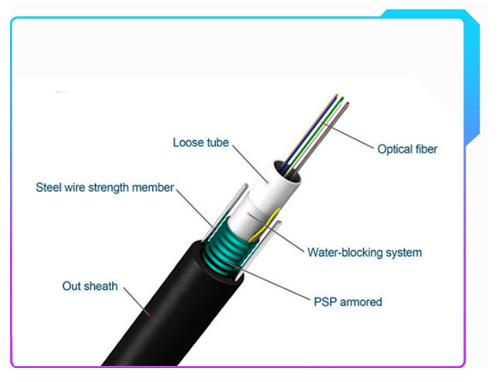

Cable construction is done with CATV Uni tube Design and S-Z, Stranded Multi Tube or Uni tube for the core
The cables are made up of 2/4/6/8/12 upto 144 fibers in single mode and multi mode
Strength Element: FRP/ Armoured Yarn/Glass Yarn/ Solid Steel Wire/ Steel Tape
Jacket Option: Single/Dual Jacket in UV Stabilized, HDPE/PU/LSZH/NYLON with Fibre Reinforced Fabric
Fibre to The Home (FTTH) - The need of these cables is rapidly rising on account of requirements for In-Building Cable Laying. These cables deliver flexibility, mechanical reliability and ease of installation.
Padmavathi Cables is one of the best optical fibre cables manufacturer, optical fibre cables exporter, optical fibre cables supplier in Mumbai, India. You can smoothly buy this product for your particular requirement. We are serve this optical fibre cables in all over countries. If you want this products please quote Now!
Optic Fibre Cables Cater to High Speed Data, Voice and Video Networks. Manufactured to Withstand adverse Conditions and Provides Maximum Fibre Safety.
Our Cables Offers Good Surface, Chemical, Rodent and Water Resistance. Due to Use of High-class Raw Material. It Prevents EMI, Current Conduit and Increases Immunity to Lightening Strikes.
Cable Construction: CATV Unitube Design
No of Fibres Per Tube: 2, 4,6,8 12 upto 144 in single mode and multimode fibers.
Core Construction: S-Z, Stranded Multi Tube or Unitube.
Strength Element: FRP/ Aramoured Yarn/Glass Yarn/ Solid Steel Wire/ Steel Tape
Jacket Option: Single/Dual Jacket in UV Stabilized, HDPE/PU/LSZH/NYLON.
FRP: Fibre Reinforced Plastic
SW: Steel Wire
Operating Temperature: -20 to 70°C.
Cable Diameter (Nom.): 6 to 10mm +/- 0.25 mm
Weight of the Cable Kg/km: 35kg +/- 5kg
Standard Length in k.m: 1.5 to 3.5 Km
Max Bending Radius: 20D, D + Cable Diameter
Duct Cables
Direct Buried armoured Cables
Aerial Cables
Shallow Water Cables
Hybrid & Composite Cables
Tactical Cables
Tight Buffered Cables are Made for Premise Application. The Fibres Coated Typically 900 Microns are Flexible, easy to Handle and Simple to Install. They are Dry Core so the Connectors can be Terminated Directly on to the Fibre. Most Suitable for Backbone and Horizontal Applications.
Fibre to Core Counts: Upto 72 in Single Mode & Multimode Fibres
Core Construction: Distribution Style And Multi Core Rugged Break-out Style.
Strength Element: Aramid Yarn/Glass Yarn
Jacket Option: Single/Dual Jacket in LSZH.
Operating Range: 30°C to +70°C
Fibre to The Home (FTTH) Applications are Rapidly Increasing, we Belive for Inside Building Laying The Cables Design has to Focus Solely on Flexiblity Mechanical Reliability to Survive Such an Application. Small Cables Size, Light Cable Weight, Easy to Install are Typical Features of Flexi Blown Cables.
Generic Specifics: Fibre to Core Counts: Upto 2 to 12 Cores in Single Mode & Multimode Fibres
Core Construction: Zip Type Dry /Tight Buffered or Unitube.
Strength Element: FRP/Aramid Yarn/Solid Steel Wire
Jacket Option: Single/Dual Jacket in UV Stabilized, HDPE/PU/ LSZ/ Nylon Others.
Operating Range: 30°C to +70°C
Duct Blown Cables
Premise Cables
Fig-8 Style Construction
Composite Fibre Cables
